Product Description:

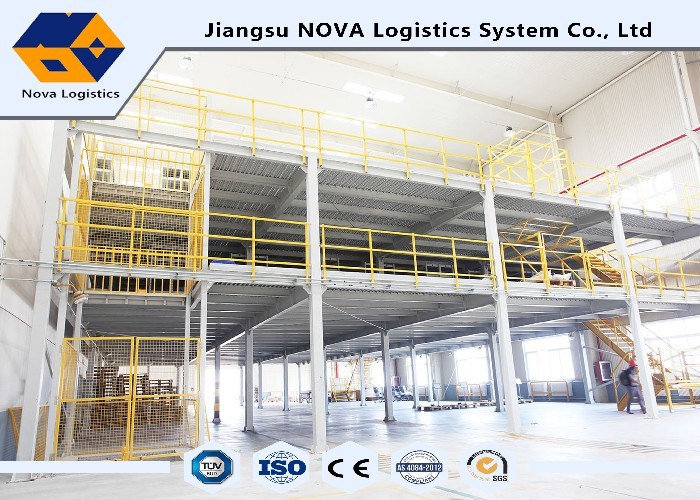

Mezzanine Racking System are widely used in high warehouse, small goods, manual access, access to a larger amount under the circumstances, from the minute use of space. Save the Treasury area. More particularly applicable to auto parts, electronics, light industry, clothing, and other enterprises of the products classified preservation.
Mezzanine Racking System medium-shelf shelves or use heavy shelf shelves plus floor as the main support panel (based on the total weight of the negative shelf unit to determine what kind of shelf), plate appearances usually use wood or cold-rolled steel gusset plate and the like.
Products information
| Product Name | Mezzanine Rack |
| Product No. | ED-M-001 |
| Max.loading capacity | 200-1000 kgs/square meter |
| Upright section: | 90*65*1.5/2.0mm, 130*90*1.5/2.0mm ect |
| "H"post: | 200*100mm 250*116mm 300*126mm 360*136mm 400*142mm |
| "H"Beams : | 200*100mm 250*116mm 300*126mm 360*136mm 400*142mm |
| Beam: | 80*45mm,100*45mm120*45mm,140*45mm,160*45mm,180*45mm etc. |
| Color | Customized |
| Material | High-quality steel,Q235 |
| Application | warehouse |
| Finish | Powder coated |
| Feature | Corrosion protection |
| MOQ | 1pcs |
| Payment Terms | T/T ; L/C |
| Delivery Time | Shipped in 20 days after payment |
| Packing Details | Standard |
| Certification | | ISO9001 | CE |
| OEM&ODM | Support |
| Characteristic 1.Can enhance the shelf height attic shelves full use of warehouse height, better use of storage space.
2.Attic shelves shelf dedicated floor laying steel gusset plate, load capacity, good integrity, carrying layer uniformity, smooth surface, easy to lock and other characteristics.
3.Attic shelves full account of user-friendly logistics, design aesthetics, structure and generous, assembly installation and removal easy, according to the ground, flexible design.
4.According to various floor design custom installation, can be easily assembled on site, without welding. Attic shelves for storing various types of items.
5.Optional downstairs forklifts, hydraulic lifts, freight elevators, etc. cargo, cargo transport is usually the same layer using a small trolley complete. |
Production Flow:
Raw material→automatic punching holes→ cold rolled and shaping→welding→ lead free powder painting.
Black semi-finished products→remove oil→ chemical remove rust→ washing→ phosphating→washing→lead free expoxy powder painting→200°C high temperature solidification→final inspection→packing
FAQ:
Q: What are your main products?
1) Heavy duty pallet racks, drive-in racks,
2) Cantilever, push-back and carton flow racks
3) Racking support mezzanine, steel platform
4) Light-duty and medium-duty shelves
5) Automatic storage and retrieval systems
Q: What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days.
The delivery time of the special products is according to the time of setting up of the tooling.
